Decorating Your Objects: A Guide to the Decorator Design Pattern

April 20, 2025

Decorating Your Objects: A Guide to the Decorator Design Pattern

Imagine you're at Subway, ready to order your sandwich. You start with the basic sandwich, choosing your bread and selecting a filling – whether it's a hearty meat option or a delicious veggie alternative.

Suppose you want something extra – some cheese, extra veggies, and sauces.

Adding cheese to your sandwich at Subway is like adding a special touch, making it even more delicious.

In the world of the Decorator Pattern, this act of customization – adding these extra layers of cheese, veggies, and sauces – is what decorators are all about. It's like giving your sandwich a little upgrade, enhancing the flavor, and making it uniquely yours.

What is a Decorator Pattern?

A decorator pattern is a structural design pattern that allows new behaviors to be added to existing objects by placing these objects inside special wrapper/decorator objects that contain the new behaviors. This is often used to extend the functionalities of classes in a flexible and reusable way.

Why do we need this?

Whenever we come across a use case to add new functionality to an existing class, the first thing that comes to our mind is Inheritance, correct?

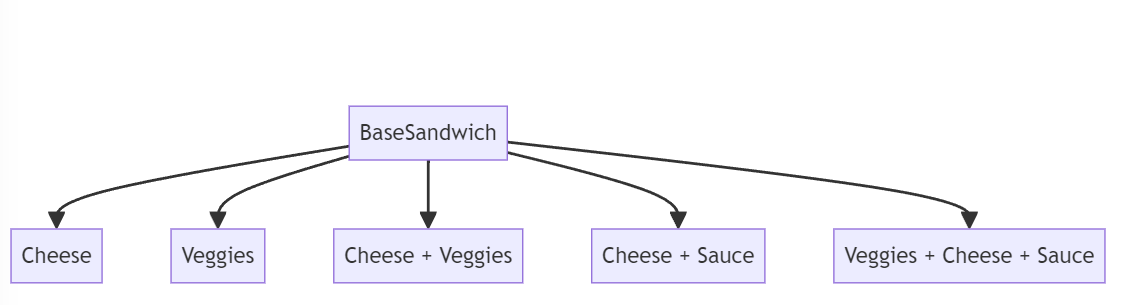

Consider the above Subway example, to add extra cheese to the base sandwich we can create a subclass BaseSandwich+Cheese and our task will be done.

Now to add veggies we can create BaseSandwich+Veggies

To add veggies and cheese, we can create BaseSandwich+Veggies+Cheese.

But is this approach efficient? With every combination, there will be a new class which will lead to a class explosion.

Solution

The decorator pattern comes into the picture in these cases, where instead of inheritance we will make use of aggregation, and we will understand everything in the below example.

Let's design a coffee ordering system where customers can customize their coffee with various additives. We'll implement the Decorator Design Pattern to handle these customizations.

Requirements for Coffee Ordering System:

    1. Basic Coffee:

      • The system should allow customers to order a basic coffee.

      • The cost of a basic coffee should be set to 10.

    2. Add Milk:

      • Customers should have the option to add extra milk to their coffee.

      • The cost of the coffee should increase by 3.5 when adding extra milk.

    3. Add Sugar:

      • Customers should have the option to add extra sugar to their coffee.

      • The cost of the coffee should increase by 1.0 when adding extra sugar.

    4. Combining Additives:

      • Customers should be able to combine multiple additives to customize their coffee.

      • For example, a customer should be able to order a coffee with both extra milk and extra sugar.

    5. Total Cost Calculation:

      • The system should calculate the total cost of the ordered coffee based on the selected options.

      • The total cost should reflect the sum of the costs associated with the chosen additives.

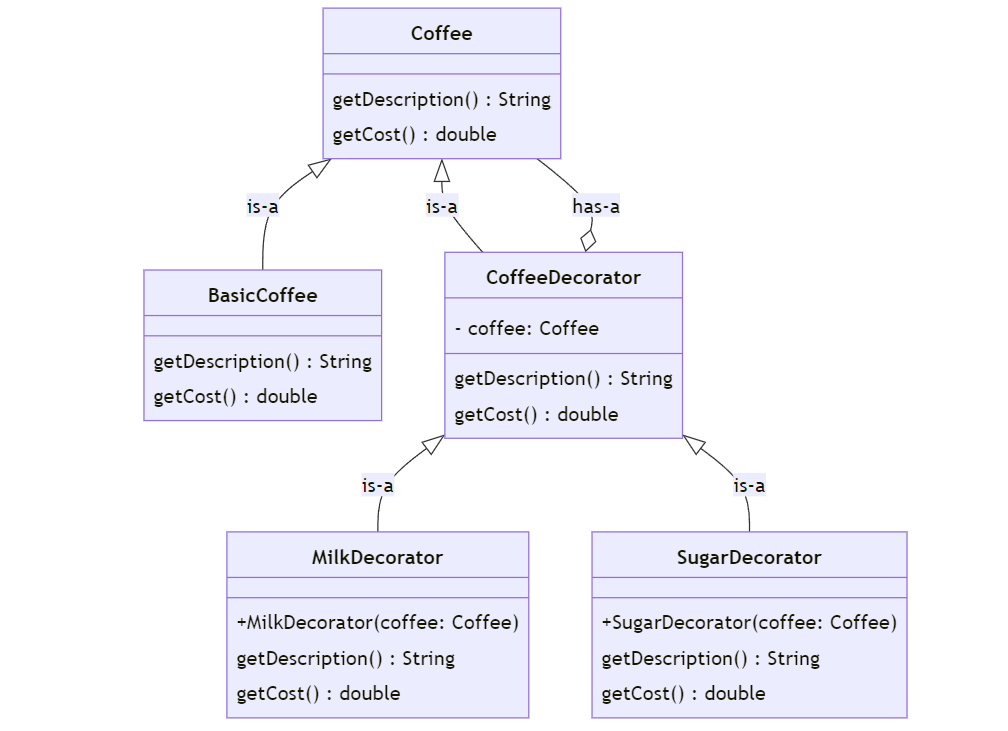

Class Diagram

  1. Coffee:

    • Represents the base component or interface for different types of coffee.

    • Defines two methods: getDescription() (providing a textual description of the coffee) and getCost() (returning the cost of the coffee).

  2. BasicCoffee:

    • A concrete class that implements the Coffee interface.

    • Represents the basic coffee without any additives.

    • Provides specific implementations for getDescription() and getCost().

  3. CoffeeDecorator:

    • An abstract class that also implements the Coffee interface.

    • Contains a private field, coffee representing the wrapped coffee component or the coffee that came for additives.

    • Defines methods to get the description and cost, delegating these operations to the wrapped coffee component.

    • Relationships:

      • To add extra features to the coffee, the CoffeeDecorator needs to have the coffee instance, so we have a HAS-A relationship(aggregation) with the Coffee interface

      • Once additives are added, it will still be a Coffee, so IS-A relationship with Coffee interface as well.

  4. MilkDecorator:

    • A concrete decorator class that extends CoffeeDecorator.

    • Adds extra functionality to the coffee (in this case, the ability to add milk).

    • Overrides the methods to modify the description and cost based on the addition of milk.

  5. SugarDecorator:

    • Another concrete decorator class extending CoffeeDecorator.

    • Adds the functionality to add sugar to the coffee.

    • Overrides methods to adjust the description and cost accordingly.

Implementation

1. Coffee Interface:

public interface Coffee {
    String getDescription();
    double getCost();
}

2. BasicCoffee Class:

public class BasicCoffee implements Coffee {
    @Override
    public String getDescription() {
        return "Basic Coffee";
    }

    @Override
    public double getCost() {
        return 10;
    }
}

This is the concrete implementation of the Coffee interface, representing a basic coffee. It provides a description ("Basic Coffee") and has a cost of 10.

3. CoffeeDecorator Abstract Class:

abstract class CoffeeDecorator implements Coffee {
    private Coffee coffee;

    public CoffeeDecorator(Coffee coffee) {
        this.coffee = coffee;
    }

    @Override
    public String getDescription() {
        return coffee.getDescription();
    }

    @Override
    public double getCost() {
        return coffee.getCost();
    }
}

This is an abstract class that implements the Coffee interface. It contains an instance variable coffee of type Coffee. It serves as the base class for all decorators.

4. MilkDecorator Class:

public class MilkDecorator extends CoffeeDecorator {
    public MilkDecorator(Coffee coffee) {
        super(coffee);
    }

    public String getDescription() {
        return super.getDescription() + " with extra Milk";
    }

    public double getCost() {
        return super.getCost() + 3.5;
    }
}

This is a concrete decorator that extends CoffeeDecorator. It adds functionality to the coffee, in this case, extra milk. It overrides getDescription() to append " with extra Milk" and getCost() to add the cost of extra milk.

5. SugarDecorator Class:

public class SugarDecorator extends CoffeeDecorator {
    public SugarDecorator(Coffee coffee) {
        super(coffee);
    }

    public String getDescription() {
        return super.getDescription() + " with extra Sugar";
    }

    public double getCost() {
        return super.getCost() + 1.0;
    }
}

Similar to MilkDecorator, this is another concrete decorator that adds functionality for extra sugar.

6. DecoratorExample Class:

javaCopy codepublic class DecoratorExample {
    public static void main(String[] args) {
        Coffee basicCoffee = new BasicCoffee();
        printInvoice(basicCoffee);

        Coffee basicCoffeeWithExtraMilk = new MilkDecorator(basicCoffee);
        printInvoice(basicCoffeeWithExtraMilk);

        Coffee basicCoffeeWithExtraMilkAndSugar = new SugarDecorator(new MilkDecorator(basicCoffee));
        printInvoice(basicCoffeeWithExtraMilkAndSugar);
    }

    private static void printInvoice(Coffee coffee) {
        System.out.println("Order: " + coffee.getDescription());
        System.out.println("Cost: " + coffee.getCost());
        System.out.println("--------");
    }
}

This is the main class demonstrating the usage of the Decorator Pattern. It creates instances Coffee with various decorators and prints their descriptions and costs.

Execution

Let's break down the execution flow of the line:

Coffee basicCoffeeWithExtraMilkAndSugar = new SugarDecorator(new MilkDecorator(basicCoffee));

  1. basicCoffee Creation:

    • basicCoffee is an instance of the BasicCoffee class, representing a basic coffee without any additives.

  2. MilkDecorator Wrapping:

    • new MilkDecorator(basicCoffee) creates a new instance of MilkDecorator and wraps it around the existing basicCoffee.

    • Now, basicCoffee is enclosed within the MilkDecorator, allowing the addition of milk functionalities.

  3. SugarDecorator Wrapping:

    • new SugarDecorator(new MilkDecorator(basicCoffee)) further wraps the result from the previous step (MilkDecorator) with a SugarDecorator.

    • This nesting allows for multiple decorators to be stacked, each extending the functionalities of the previous one.

  4. basicCoffeeWithExtraMilkAndSugar:

    • The final result is assigned to the variable basicCoffeeWithExtraMilkAndSugar.

    • This variable represents a complex composition of decorators around the original basicCoffee instance.

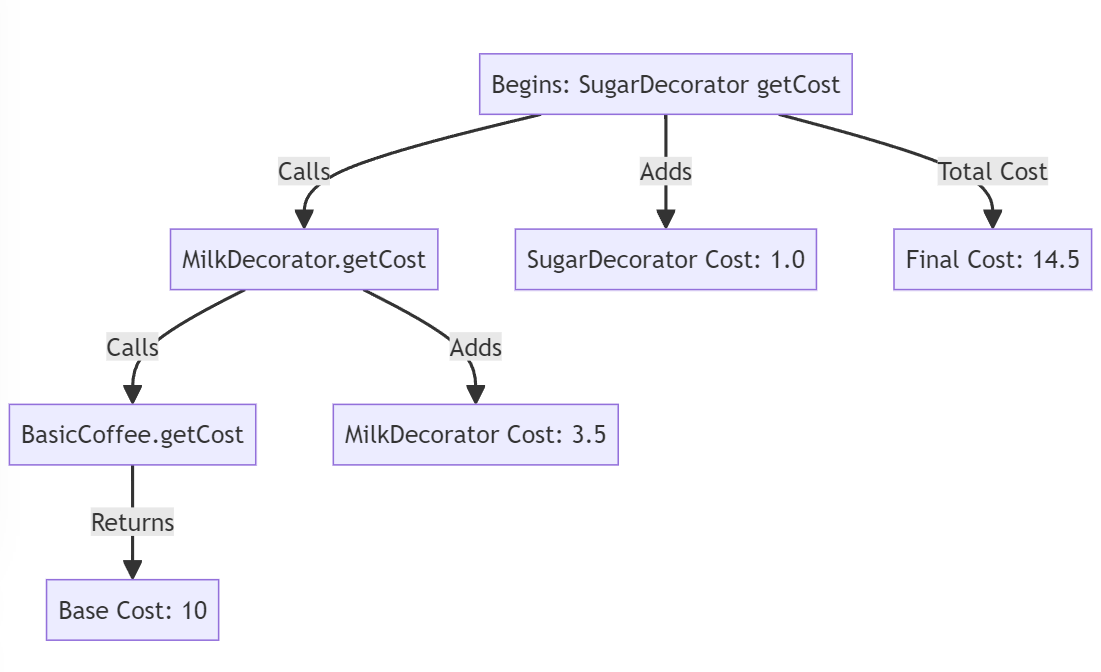

  5. Execution Flow for getCost:

    • Let's break down the getCost() flow step by step for the basicCoffeeWithExtraMilkAndSugar:

      1. SugarDecorator.getCost():

        • The getCost() method of SugarDecorator is called.

        • It calls getCost() on the wrapped decorator (MilkDecorator), adding its cost to the total.

      2. MilkDecorator.getCost():

        • The getCost() method of MilkDecorator is called.

        • It calls getCost() on the wrapped coffee (basicCoffee), adding its cost to the total.

      3. BasicCoffee.getCost():

        • The getCost() method BasicCoffee is called.

        • It returns the base cost of 10.

      4. Adding Costs:

        • The cost of BasicCoffee is 10.

        • The cost of MilkDecorator is 3.5.

        • The cost of SugarDecorator is 1.0.

        • The final total cost is the sum of these: 10 + 3.5 + 1.0 = 14.5.

      So, the getCost() flow is: SugarDecorator -> MilkDecorator -> BasicCoffee, and the final cost is 14.5.

This is all about decorator design pattern, I hope you find this useful.

Do give it a like and share it among your friends, if you will this was helpful.

Till then, Happy Coding!

Complete implementations can be found on Github
